Single & Double Channel

P3300

P3300

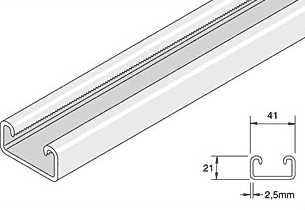

[ back to index ] [ image ]   [ data ]

P3300

Data

A(cm2)
/m (kg/m)
-
2.32
1.91
-
I y-y (cm4)
Z y-y (cm3)
r y-y (cm)
1.19
0.97
0.71
I z-z (cm4)
Z z-z (cm3)
r z-z (cm)
5.34
2.59
1.51



Load Data

250 5.425 0.45 - - 10.222
500 2.708 1.81 - 2.080 9.761
750 1.805 4.07 1.658 0.922 8.427
1000 1.354 7.24 0.932 0.520 6.769
1250 1.079 11.32 0.598 0.324 5.376
1500 0.903 16.30 0.412 0.226 4.287 *
1750 0.775 22.19 0.304 - 3.463 *
2000 0.677 28.99 0.226 - -
*kL/r>180



Part No.FinishLengthWeight
P3300X3HG3M 5.73
P3300X6HG6M 11.46
P3300X3PG3M 5.36
P3300X6PG6M 10.72
P3300X3PO3M 5.28
P3300X6PO6M 10.56
P3300X3 SS 3M 5.87
P3300X6 SS 6M 11.75
